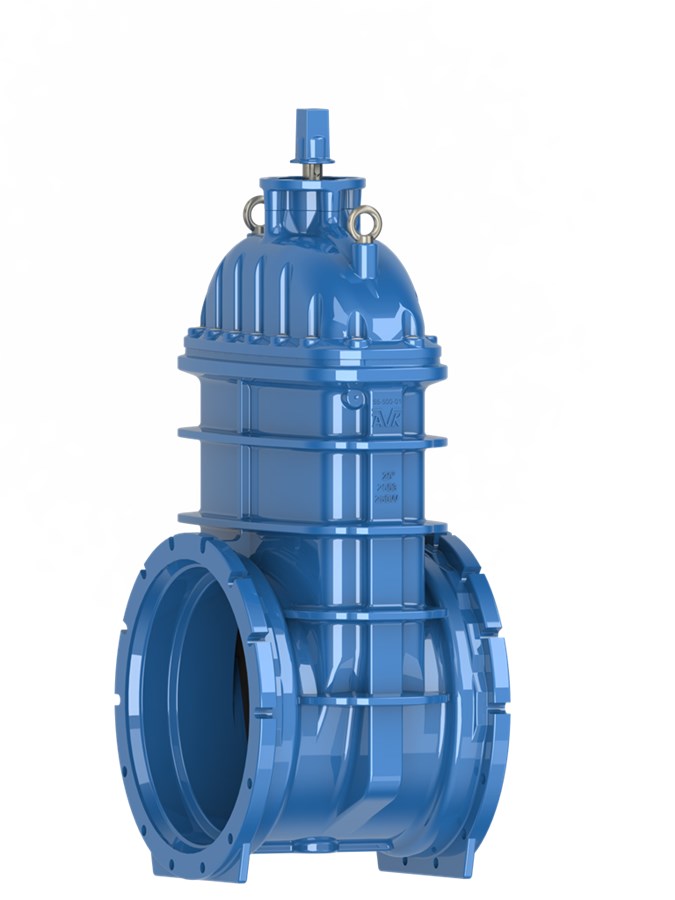

AVK LARGE DIAMETER GATE VALVE, MJ/MJ
SS stem, wrench nut, EPDM, 316 bolting, epoxy coating, OL/OR
Contact
American AVK
2155 Meridian Blvd. Minden, NV 89423
MJ x MJ gate valve to AWWA C515 for water and other neutral liquids to 160°F
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own EPDM rubber compound with NSF drinking water approval. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple stem seal system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability
| Variant 55/00-003 | |
|---|---|
| Connection: | Mechanical Joints |
| Material: | Ductile Iron |
| PN: | 250 psi |
| Closing direction: | Open Left/Open Right |
Features
- Fixed, integral wedge nut prevents vibration
- Polyamide wedge shoes protect the wedge rubber and provide low operating torque
- Stainless steel stem and brass wedge nut for high corrosion resistance
- Wedge rubber in drinking water approved EPDM
- A large conical stem hole in the wedge prevents stagnant water from accumulating inside the valve
- Stem nut in high strength alu-bronze
- Three independent stem seals: outermost a wiper ring protects against pollution entering from the environment, it is backed up by the two O-rings surrounding the radial bearing and innermost the main hydraulic seal to the flow consists of one or two O-rings
- Thrust bearing consisting of stainless steel discs coated with a low friction, self-lubricating bronze-PTFE composite
- Round NBR bonnet gasket fixed in a recess to avoid blow out
- Counterbored A4-70 stainless steel bonnet bolts encircled by the bonnet gasket and sealed with hot-melt glue
- ISO F16 actuator flange
- Integrated lifting eyes for easy handling
- Coating in 250µm blue RAL 5017 fusion bonded epoxy (FBE)
- Installation with horizontal or vertical stem
- Stem cap
Downloads
Datasheet
Installation, Operation & Maintenance
Details
Product Brochure
Video
Price List
Test/Approvals
- Approved according to ANSI/NSF Standard 61
- Approved according to ANSI/NSF Standard 372
Standards
- Designed according to AWWA C509, Designed according to AWWA C515
